FOODWIRE

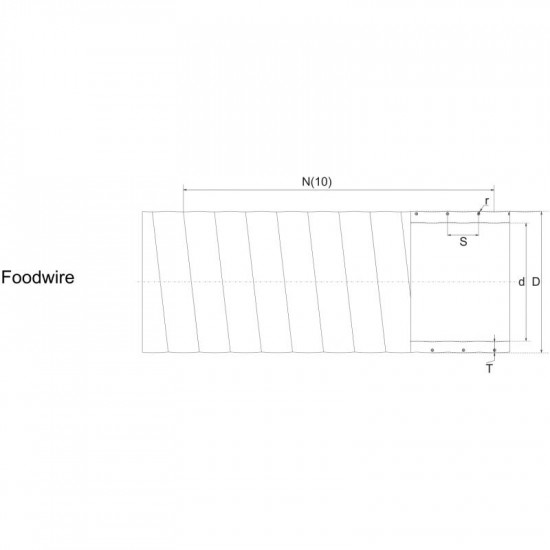

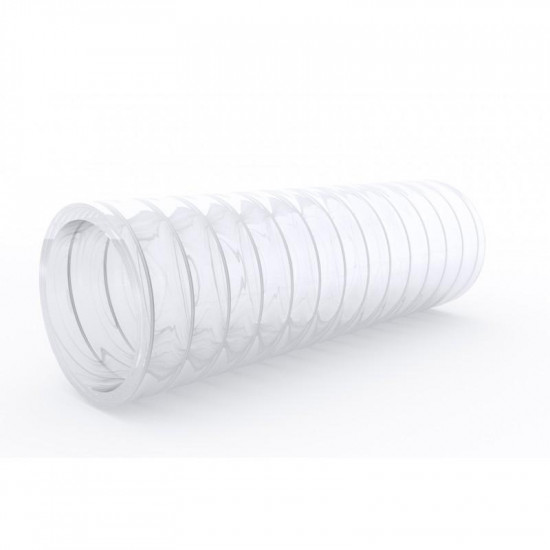

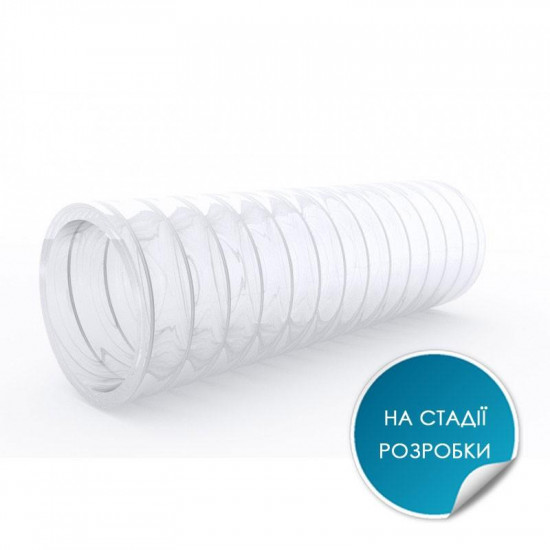

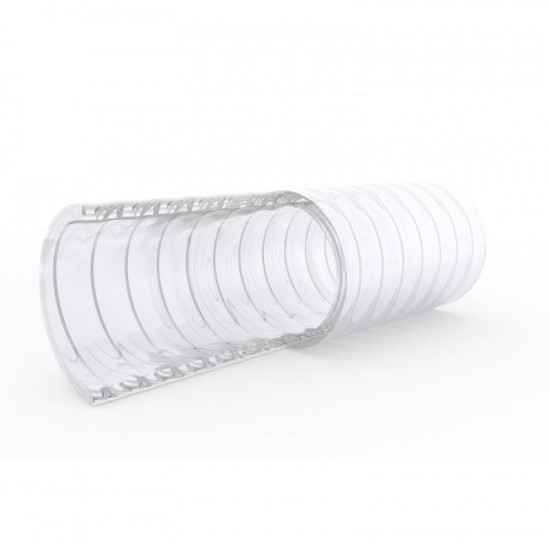

Usage: durable hose for drainage and transferring of drinking quality water as well as foodstuff or their components like mineral water, juices, wines, distillated products, milk, vinegar, vegetable oils, drinks of low alcohol content no more than 26%, milk and produce with milk content. Zooculture and breeding: milking machines and systems, milk plants and farms. It is used in medicine and pharmacy services and also in junctions or parts of equipment which contact with human body.   Properties: hose is made of highly-plastic PVC, it is shock- and pressure-resistant due to armoring with steel spiral. It is comfortable in manipulation, resistant to UVR, various external atmospheric factors and aggressive substances including ones of organic origin.   Structure and color: transparent plastic PVC wall, chilled steel spiral. Both internal and external surfaces are smooth as spiral is sunk into the hose body. Red spiral is available to order.   Operating temperature: - 15oС… + 60oС.

Internal Ø	Internal Ø	Max.thikness of wall	Operating pressure	Maximum pressure	Bend radius	Vacuum	Container size	Bunch length
mm	inch	mm	bar	bar	mm	m/Н2О	m3	m
16	5/8	3,0	5	15	30	8,5	0,030	25
19 (20)	3/4	3,5	5	15	35	8,5	0,035	25
25	1	4,0	5	15	45	8,5	0,056	25
27		4,0	5	15	50	8,5	0,061	25
28		4,0	5	15	50	8,5	0,067	25
30		4,0	5	15	50	8,5	0,073	25
32	1 1/4	4,2	4	12	55	8,5	0,078	25
35		4,2	4	12	60	8,5	0,087	25
38	1 1/2	4,4	4	12	65	8,5	0,114	25
40		4,5	4	12	70	8	0,125	25
43		4,8	4	12	75	8	0,132	25
45	1 3/4	3,8	4	12	80	8	0,150	25
50(51)	2	5,0	3,5	10,5	90	8	0,197	25
55		5,5	3,5	10,5	140	8	0,223	25
63	2 1/2	6,0	3,5	10,5	150	8	0,285	25
75 (76)	3	6,1	3,5	10,5	160	7	0,406	25
80		6,2	3	9	170	7	0,442	25
90	3 1/2	6,5	3	9	180	7	0,630	25
100		6,9	3	9	200	7	0,765	20, 25
102	4	7,0	3	9	210	7	0,825	20, 25


The hose is produced according to the European standards UNI EN ISO 3994, the quality is guaranteed with the certification SEC ISO 9001:2008.   In accordance with the Norms UNI EN ISO 1307:2088 the hose has the following Tolerance, taking into consideration thermo plasticity of materials which undergo deformation due to temperature changes:Internal diameter: +/- 2%, relevant linear deviation: +/-5%. Work and maximum pressure of the hose is measured under the temperature of 20°C   Free of hazardous substances and secondary materials.

Hose corresponds European standards for the possibility to contact food substances and has Conclusion of state sanitary and epidemiological service of Ukraine for usage in foodstuff industry and other spheres connected with contact to food substances.
