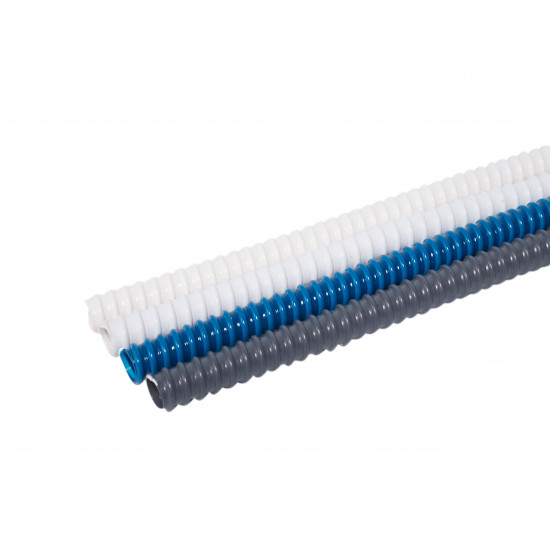

Hose for wire insulation in various cable, drainage of air conditioners ELECTRO 013

Usage: Electric wiring in automobiles, inspection and managing devices in industry, on vessels, automobiles and lathes. The hose secures wire insulation in various cable systems. It also may be used as independent cable passage in critical sectors like fiber-optic communication lines. Installation of drainage of air conditioners.

Properties: the hose is made of special antistatic plastic PVC. It is armored with braced spiral made of stress- and pressure-resistant hard PVC. This structure gives the possibility to achieve perfect balance between weight and mechanical strength with stable performance specifications. It is resistant to any various external atmospheric factors, especially to UVR and majority of aggressive chemical substances. \

Structure and color: plastic PVC wall, rigid PVC spiral. Internal surfaceis almost smooth, external surface is riffled. White or dark grey, black is available to order.

Operating temperature: - 5oС… + 60oС.

The hose is produced according to the European standards UNI EN ISO 3994, the quality is guaranteed with the certification SEC ISO 9001:2015.

In accordance with the Norms UNI EN ISO 1307:2088 the hose has the following Tolerance, taking into consideration thermo plasticity of materials which undergo deformation due to temperature changes: Internal diameter: +/- 2%, relevant linear deviation: +/-5%.  Work and maximum pressure of the hose is measured under the temperature of 20°C

 Free of hazardous substances and secondary materials.
