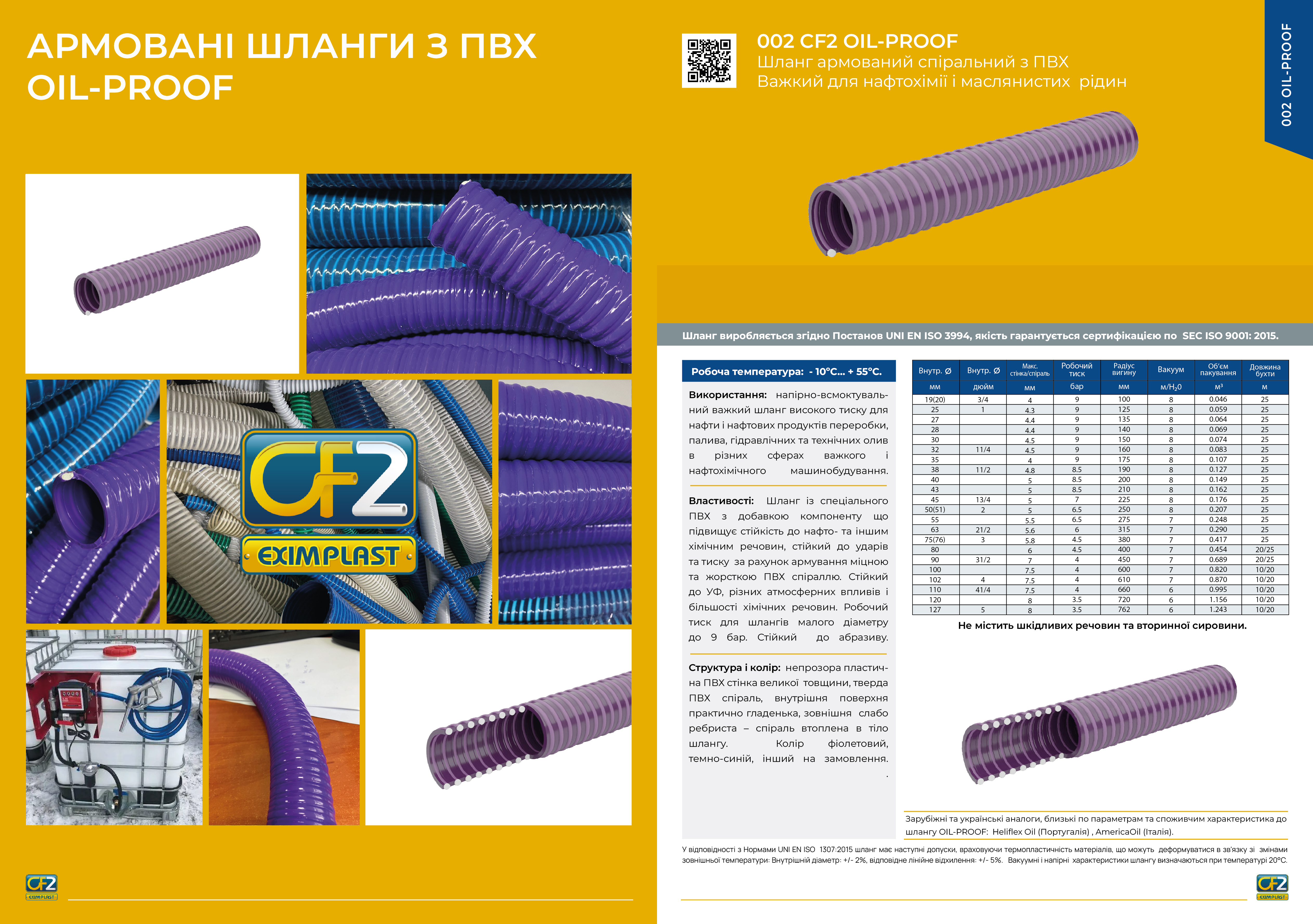

OIL-PROOF

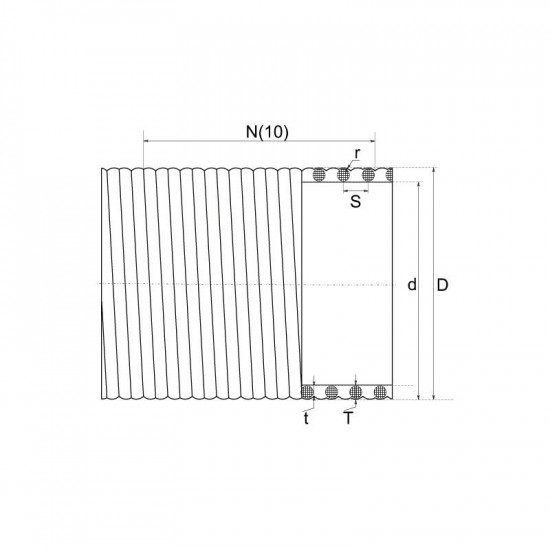

Usage: Delivery-suction heavy high-pressure hose for oil and petroleum derivatives, fuel, hydraulic and industrial oils in different spheres of heavy engineering and petrochemical industry.   Properties: Hose is made of special PVC with added component which in creases resistance to oil products and other chemical substancesточкасзапятой it is resistant to crashes and pressure due to armoring with solid and rigid PVC spiral. The product is resistant to UV, other types of weather impact and the majority of chemical matters. Operating pressure for small diameter hoses comprises 9 bars. It is abrasion-resistant.   Structure and color: non-transparent plastic thick PVC wall, rigid PVC spiral, internal surface is practically smooth, external surface has almost no riffs – spiralis actually sunk into hose body. Dark blue color, Black and white are available to order.   Operating temperature: - 20oС… + 60oС.

Internal Ø	External Ø	Max.wall / spiral	Operating pressure	Maximum pressure	Bend radius	Vacuum	Container size	Bunch length
mm	inch	mm	bar	bar	mm	m/Н2О	m3.	M
19 (20)	3/4	4	9	27	100	8	0,046	25
25	1	4,3	9	27	125	8	0,059	25
27		4,4	9	27	135	8	0,064	25
28		4,4	9	27	140	8	0,069	25
30		4,5	9	27	150	8	0,074	25
32	1 1/4	4,5	9	27	160	8	0,083	25
35		4,	9	27	175	8	0,107	25
38	1 1/2	4,8	8,5	25,5	190	8	0,127	25
40		5	8,5	25,5	200	8	0,149	25
43		5	8,5	25,5	210	8	0,162	25
45	1 3/4	5	7	21	225	8	0,176	25
50(51)	2	5	6,5	19,5	250	8	0,207	25
55		5,5	6,5	19,5	275	7	0,248	25
63	2 1/2	5,6	6	18	315	7	0,290	25
75 (76)	3	5,8	4,5	13,5	380	7	0,417	25
80		6	4,5	13,5	400	7	0,454	20, 25
90	3 1/2	7	4	12	450	7	0,689	20, 25
100		7,5	4	12	600	7	0,820	10, 20
102	4	7,5	4	12	610	7	0,870	10, 20
110	4 1/4	7,5	4	12	660	6	0,995	10, 20
120		8	3,5	10,5	720	6	1,156	10, 20
127	5	8	3,5	10,5	762	6	1,243	10, 20

The hose is produced according to the European standards UNI EN ISO 3994, the quality is guaranteed with the certification SEC ISO 9001:2008.   In accordance with the Norms UNI EN ISO 1307:2008 the hose has the following tolerance, taking into consideration thermo plasticity of materials which undergo deformation due to temperature changes:Internal diameter: +/- 2%, relevant linear deviation: +/-5%. Vacuum and maximum pressure properties of the hose are measured under the temperature of 20°C.   Free of hazardous substances and secondary materials.
