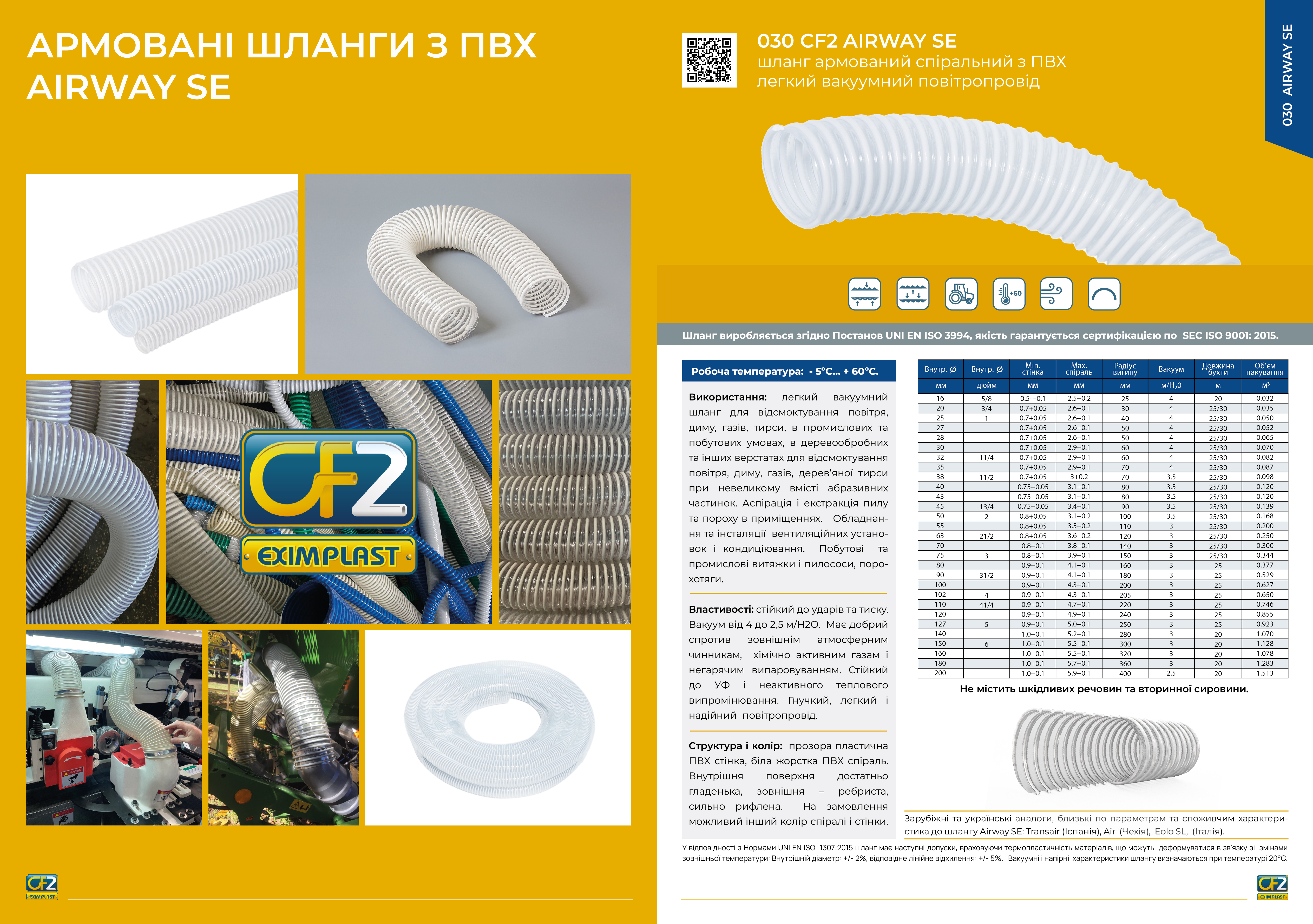

AIRWAY SE

Usage: Light vacuum hose for suction of air, smoke, gases or wood dust in industrial and living environment in woodwork machines and other lathes for suction of air, smoke, gases, wood dust with low content of abrasive particles. Aspiration and extraction of smoke and dust in indoor spaces. Equipment and installation of ventilation units and conditioning. Household and industrial draught equipment and vacuum cleaners.

Properties:  Impact-protected and pressure-resistant. Vacuum from 4 to 2,5 m/H2О.  Obtain sufficient resistance to external atmospheric factors, reactive gases and lukewarm vapors. Resistant to UV and inert thermal emission. Flexible, light and reliable air hose.

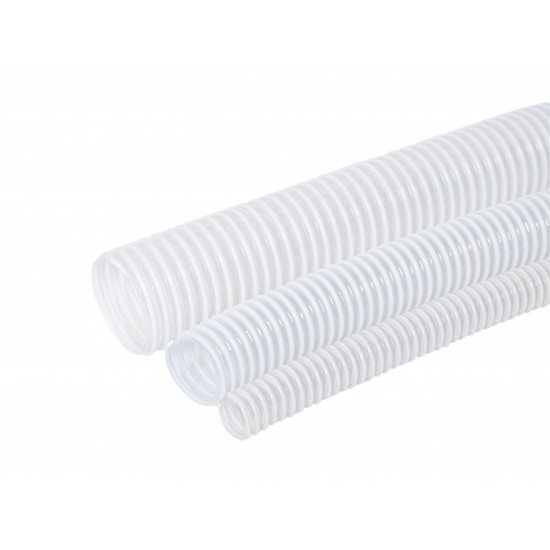

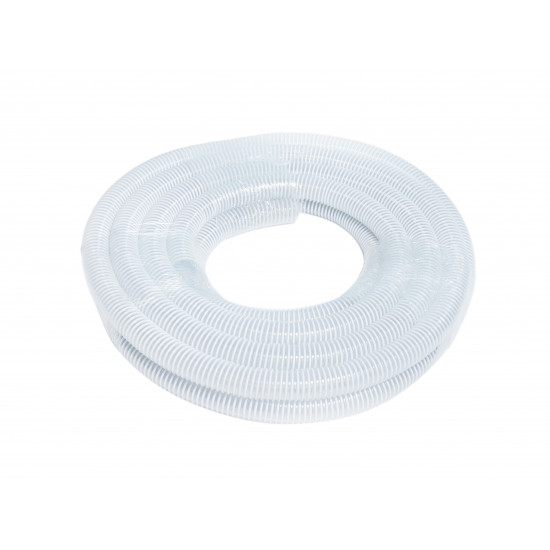

Structure and color:  transparent plastic PVC wall, white rigid PVC spiral. Internal surface is smooth, external surface is riffled and heavily grooved. Other color of the wall and spiral is available to order.

Operating temperature:  - 5oС… + 60oС.



Internal Ø	Internal Ø	Min.wall thikness	Max.spiral thikness	Bend radius	Vacuum	Bunch length	Container size
inch	mm	mm	mm	mm	m/Н2О	m	m3
5/8	16	0,50	2,4	25	4	25	0,032
3/4	19(20)	0,50	2,4	30	4	25	0,035
1	25	0,75	2,5	40	4	25	0,050
	27	0,75	2,5	50	4	25	0,052
	28	0,75	2,7	50	4	25	0,065
	30	0,75	2,7	60	4	25	0,070
1 1/4	32	0,75	2,7	60	4	25	0,082
	35	0,75	2,7	70	4	25	0,087
1 1/2	38	0,75	2,7	70	3,5	25	0,098
	40	0,80	2,7	80	3,5	25	0,120
	43	0,8	2,7	80	3,5	25	0,120
1 3/4	45	0,80	2,9	90	3,5	25	0,139
2	50(51)	0,85	3,2	100	3,5	25	0,168
	55	0,85	3,2	110	3	25	0,200
2 1/2	63	0,85	3,5	120	3	25	0,250
3	75(76)	0,90	3,9	150	3	25	0,344
	80	1,00	4,2	160	3	25	0,377
3 1/2	90	1,00	4,2	180	3	25	0,529
	100	1,00	4,4	200	3	25	0,627
4	102	1,00	4,5	205	3	25	0,650
4 1/4	110	1,00	4,8	220	3	25	0,746
	120	1,00	5,3	240	3	25	0,855
5	127	1,00	5,3	250	3	25	0,923
	130	1,00	5,5	260	3	25	0,984
	140	1,10	5,7	280	3	25	1,070
6	150(152)	1,10	6,0	300	3	20	1,128
	160	1,10	6,0	320	3	20	1,078
	180	1,10	6,0	360	3	20	1,283
	200	1,10	6,0	400	2,5	20	1,513

The hose is produced according to the European standards UNI EN ISO 3994, the quality is guaranteed with the certification SEC ISO 9001:2008.

In accordance with the Norms UNI EN ISO 1307:2088 the hose has the following Tolerance, taking into consideration thermo plasticity of materials which undergo deformation due to temperature changes:

Internal diameter: +/- 2%, relevant linear deviation: +/-5%
Work and maximum pressure of the hose is measured under the temperature of 20°C.

Free of hazardous substances and secondary materials.
